光伏组件屋顶构件EN 13501-5防火等级测试- BroofT1/T2/T3/T4
作者:admin    发布于:2023-09-05 09:24:06    文字:【】【】【
摘要:光伏组件等屋面系统及材料的防火等级性能需要符合EN13501-5(BS EN 13501-5)标准要求,我司南京睿督公司为UKAS资质及NB欧盟公告号实验室授权合作机构,专业提供BS 476-3,EN 13501-5, CEN/TS 1187等屋顶材料(如光伏组件)防火性能测试。咨询电话:025-86583475 网址:www.fire-test.com

光伏组件等屋面系统及材料的防火等级性能需要符合EN13501-5 (BS EN 13501-5)标准要求,我司南京睿督为UKAS资质及NB欧盟公告号实验室授权合作机构,专业提供EN 13501-5,BS 476-3,CEN/TS 1187等屋顶材料(如光伏组件)防火性能测试。咨询电话:025-86583475  网址:www.fire-test.com

英国Warringtonfire实验室
南京睿督为英国Warringtonfire授权合作机构,专业从事建材防火阻燃耐火测试 。
Warringtonfire Gent is now fully accredited for Broof T1-T4 roof testing. The Gent laboratory can offer all four European roof tests (exposure to external fire), covering the whole European market for Broof classifications as well as being able to test according to BS 476-3 for the UK market.

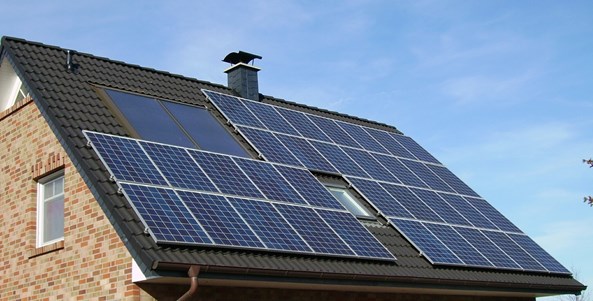

光伏组件Broof T1-T4 testing.jpg
EN13501-5标准名称及适用范围
EN 13501-5 Fire classification of construction products and building elements-Part 5: Classification using data from external fire exposure to roofs tests
EN 13501-5 建筑产品及部件燃烧性能的分类-第5部分:根据屋顶构件耐火试验数据的分级要求。

EN13501-5标准适用范围
EN 13501-5 this European Standard Provides the fire performance classification procedures for roofs/roof coverings exposed to external fire based on the four test methods given CEN/TS 1187:2012 and relevant extended application rules.
For the classification of a roof/roof covering, only those test methods and those application rules need to be applied for which the corresponding classification is envisaged.

屋顶构件EN13501-5防火等级测试方法
Test 1: Method with burning brands
Test 2: Method with burning brands and wind
Test 3: Method with burning brands, wind and supplementary radiant heat
Test 4: Two-stage method incorporation burning brands, wind and supplementary radiant heat
CEN/TS 1187: Test methods for external fire exposure to roofs 屋顶外部着火的试验方法
Broof(t4) –No penetration of roof system within 1h
In preliminary test, after withdrawal of the test flame, specimens burn for <5min
In preliminary test, flame spread<0.38m across region of buring

EN 13501-5 (classification): Classification using data from external fire exposure to roof tests建筑制品或建筑构件的防火分级 第5部分:暴露于外部火的屋面试验分级要求
CEN/TS 16459 (EXAP): Extended application of test results from CEN/TS 1187屋顶和屋顶覆盖物外部防火,源自CEN/TS 1187标准试验结果的扩展应用

光伏组件Exova BroofT1/T2/T3/T4  http://www.firete.com/news/zhengce/13983.html

光伏组件等屋顶构件EN13501-5 T4测试方法更严格,更多关于BROOF T4测试内容,请咨询南京睿督公司。

南京睿督公司咨询电话:025-8658 3475   400-603-6575
网址:www.firete.com    www.fire-test.com
邮箱:info@firete.com    info@fire-test.com
微信:firetesting  或    17714189018
...
